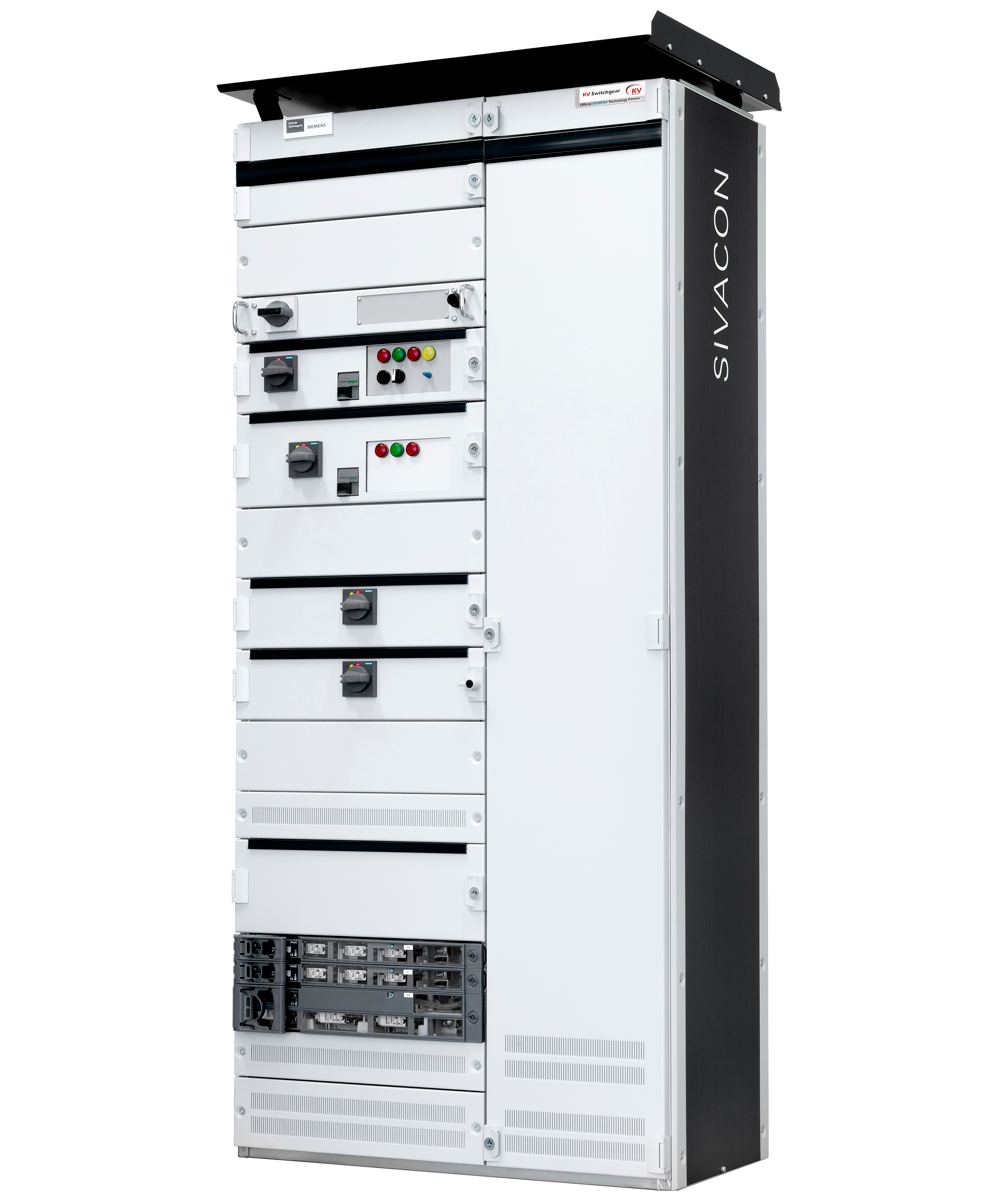

SIVACON S8
Low-Voltage Switchgear (IEC 61439-2)
Power distribution board and motor control center (MCC)
| Electrical data | Maximum values |
|---|---|
| Rated insulation voltage (Ui) | 1000 V |
| Rated operational voltage (Ue) | Up to 690 V (50 Hz) |
| Rated impulse withstand voltage (Uimp) | Up to 8 KV - Up to 12 KV |
| Rated impulse withstand current (Ipk) | 330 KA |
| Rated short-time withstand current (Icw) | 150 KA , 1 sec |
| Rated normal current of busbar | 7010 A |
| Rated normal current of feeder | 6300 A |
